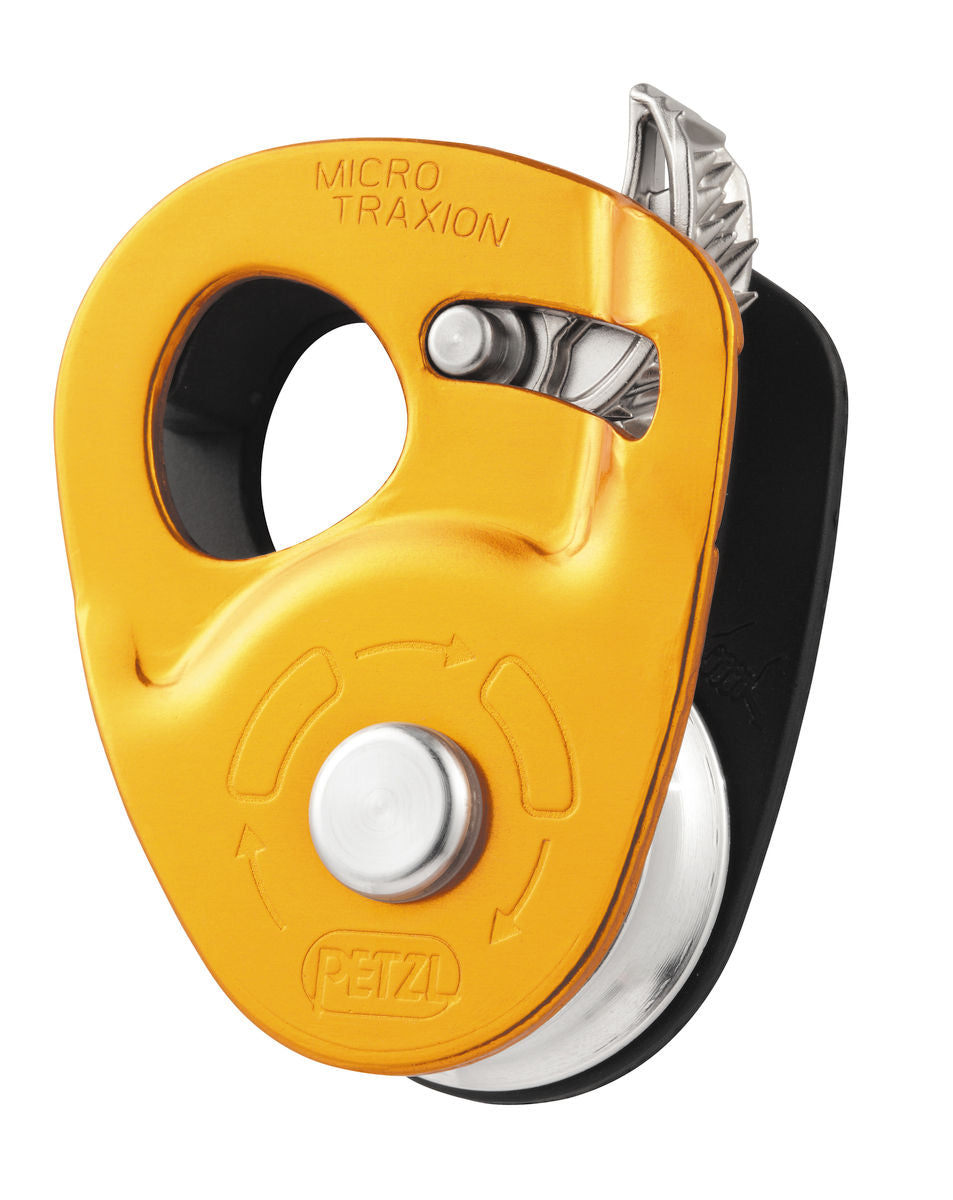

Petzl Micro Traxion

High efficiency, ultra-light progress capture pulley

The MICRO TRAXION is an ultra-light (85 g), ultra-compact progress-capture pulley that is exceptionally efficient (91 %) thanks to its sealed ball bearings. The cam can be locked in open position so the device can be used as a simple pulley.

DESCRIPTION:

• Ultra-light and ultra-compact progress capture pulley (volume and weight 50 % less than the MINI TRAXION)
• Sealed ball bearings provide excellent efficiency (91 %)
• Cam can be locked in open position so device can be used as a simple pulley. Works even on frozen or muddy ropes.
• For use on 8 - 11 mm diameter ropes
• Rope installation diagrams engraved inside pulley
• Designed for crevasse rescue, hauling, self-rescue and as an emergency ascender

SPECIFICATIONS:

• Weight: 85 g
• Certification(s): CE EN 567, UIAA
• Min. rope diameter: 8 mm
• Max. rope diameter: 11 mm
• Sheave type: sealed ball bearings
• Sheave diameter: 25 mm
• Working load: 2 x 2.5 = 5 kN
• Breaking strength: 2 x 7,5 = 15 kN
• Working load as progress capture pulley: 2.5 kN
• Breaking strength as progress capture pulley: 4 kN
• Efficiency: 91 %
